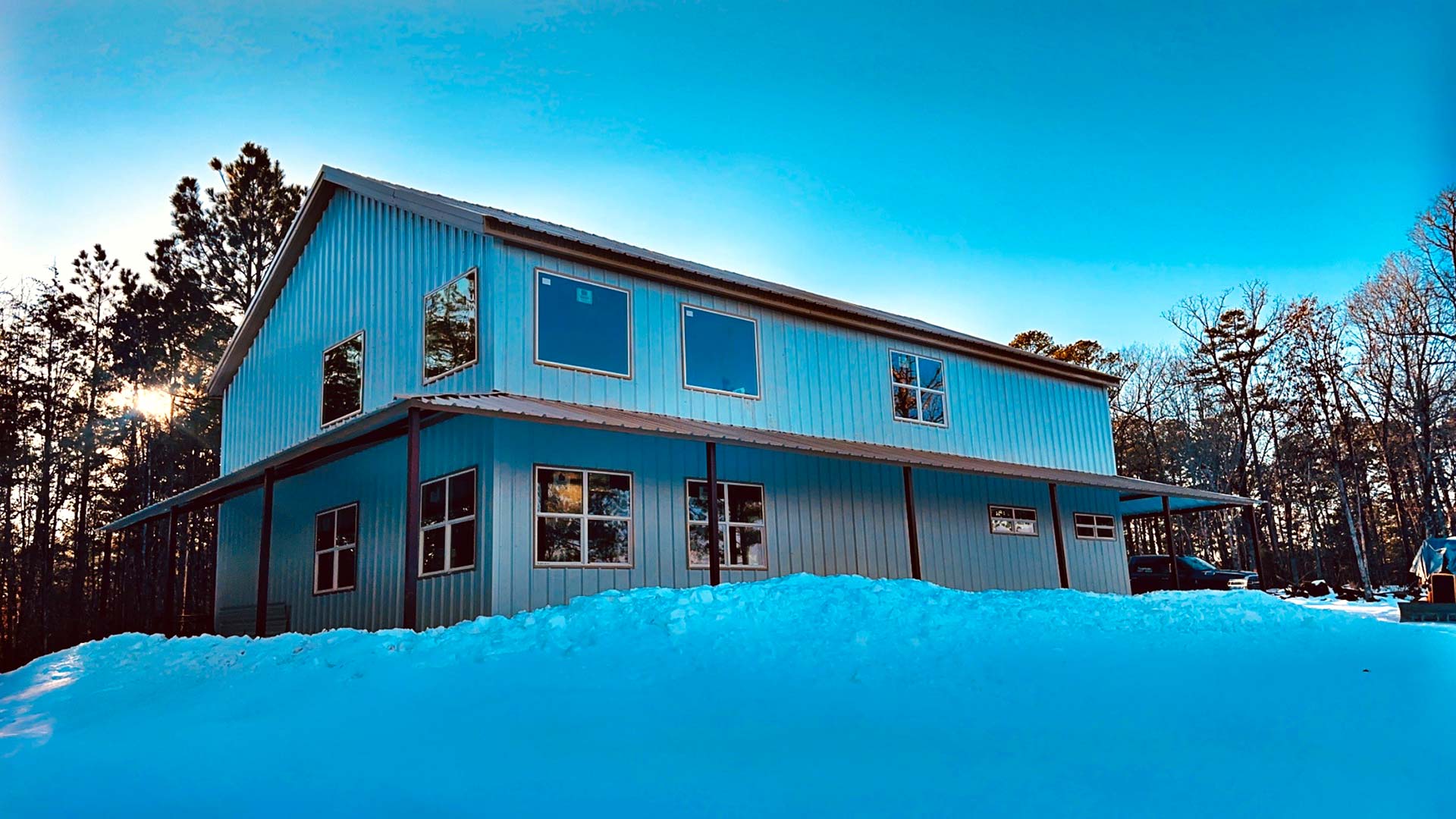

The Texas Retreat Barndominium Floor Plan 5BR 4BA a Game Room and Loft
60x40 Five bedroom, two-story barndominium plan
The Texas Retreat barndominium was designed to maximize livable square footage on a 60×40 footprint, delivering a highly efficient barndominium that blends comfortable living with serious functionality. With 3,328 sq ft, this plan includes five bedrooms, four full bathrooms, a large dedicated shop, and wraparound porches, making it ideal for full-time living, hosting, or multi-use family properties.
Texas Retreat Floor Plans & Pricing
Floor Plan Specifications
This home plan can be modified to meet your needs.
Texas Retreat
Choose your plan package below
Need Help with Your Barndominium?
Speak with a build advisor — not a sales rep. Free, no obligation.
Get Personalized Help — Free, No ObligationSee Home Kit Prices Texas Retreat
Most buyers building the Texas Retreat pair it with one of our kits; locking in material costs and cutting months off their build timeline.
Floor Plan Details: Texas Retreat
3,328 Square Foot Texas Retreat Barndominium has 5 Bedrooms, 4 Full Baths, A Loft, a Game Room, and a Garage with a Shop
Step into a grand open living area that flows effortlessly into a modern, fully-equipped kitchen, the heart of this home. The master suite is a sanctuary of luxury and relaxation, designed to be built with top-notch amenities that beckon a hotel-like experience right at home.
Home Floor Plan includes:
- Floor Plan designed by an architect
- Roof Plan
- Electrical Plan
- Window and Door Schedule
- Elevations
- Renderings
An additional 261 sq ft loft adds a versatile space perfect for an office, extra guest room, or a cozy reading nook. For entertainment and leisure, our game room offers hours of fun and camaraderie. It’s a space that will see laughter, competition, and memorable moments.
Adding to the allure of this 40×60 floor plan is a sizeable 780 sq ft shop/garage, providing ample space for DIY projects, storage, or parking vehicles. But the charm of the Texas Retreat doesn’t end indoors. A wrap-around porch provides an inviting outdoor living space where you can unwind with a cup of coffee in the morning or watch the stunning Texas sunsets in the evening.
Experience the blend of rustic elegance and modern amenities at the Texas Retreat, where every day feels like a getaway. Unwind, entertain, and enjoy – this barndominium isn’t just a place to live; it’s a lifestyle. Part of our Texas Barndominium Plans collection.
The cathedral ceiling in the living area of the barn-style home accentuates the Open Floor Plan where you can gaze from the kitchen into the living area. The floor plan is designed so that the living area, dining room, and kitchen blend into one living space, making the home a perfect setting for get-togethers, hanging out with friends, and casual family dinners.
The Master Bedroom in this barndominium is on the main floor with a large private bath and private closet.
The Texas Retreat Barndominium kitchen should feature high-end stainless steel appliances and a spacious island that can double as a gathering place. Our barndo designer believes that Quartz countertops will provide a sharp contrast against the minimalist cabinetry, with both elements enhancing the style of the barndominium.
The garage and shop can be your entryway into the home. The shop is designed with two garage doors and two entrances to the barndo. The interior can be illuminated by low-voltage LED lights that allow you to run the wire without an electrician. LED lights still offer all the light you need for an optimal workspace. The garage’s design ensures that this area is not just a practical addition but also an extension of the home’s stylish character.
The steel barndominium kit includes all metal for the main steel structure, roof, siding, and porch roof material.
Wood posts and wood rafters are not included. Windows and doors are not included.
- Engineered plans for the base metal structure are included
- Porches, rafters, and posts are normally made of wood, which is not included.
- All wall girts, roof girts, and cutouts will be done on-site by the welder.
- Weld-up kits will provide the CNC cut clips for metal structures.
- All clips will be welded on-site by the contractor.
- Paneling is included in the client’s choice of standard colors. Metal Gauge:
- 26 Gauge PBR Panel for Roof & Walls.
- Peak boxes included
- Rake end caps included
- Colored Tek and Lap Tek screws are included for Panels.
- Butyl Tape and PBR closures are included.
- Doors and windows are not included.
- Approx. 4-6 weeks delivery time after finalized engineered plans have been received and signed
Exterior walls are 20′-6″ tall.
The ceilings on the first floor are 10 feet.
The peak of the roof is just over 30 feet tall.
The top edge of the 2nd-floor windows is 18’6″ from the ground.
Get Your The Texas Retreat Barndominium Floor Plan 5BR 4BA a Game Room and Loft Plans
Quick PDF delivery. Architect-sealed for permits. Modify to fit your lot, climate, or style — from $150.
Starting at $950 • Single-build license • Quick download
