Barndominium Floor Plan

The Dove Barndominium

2,702 Sq Ft

3 Bed

3 Bath

1 Story

56×48

Dove barndominium plan rendering shows front of house

The Lonesome Dove's Unique Barndominium Plan Makes It a Popular Build

2702 Sq Ft Barndominium plan with a Loft. 3BR & 3BA with a large porch on the back of the barn home. A unique design for a small barndo. The barndominium can be built anywhere in the USA; Structural changes will be made for high wind or snow areas.

The loft in this barndominium offers great additional square footage without compromising the wide-open feel.

Each of our home plans is architect-designed and professionally developed for real-world construction.

Very Popular Vaulted Ceiling Great Back Porch

See floor plans, specs & pricing below

Explore the Plans

The Dove Barndominium Floor Plans & Pricing

Dove 3 Bedroom 3 Bathroom Barndominium with Loft layout

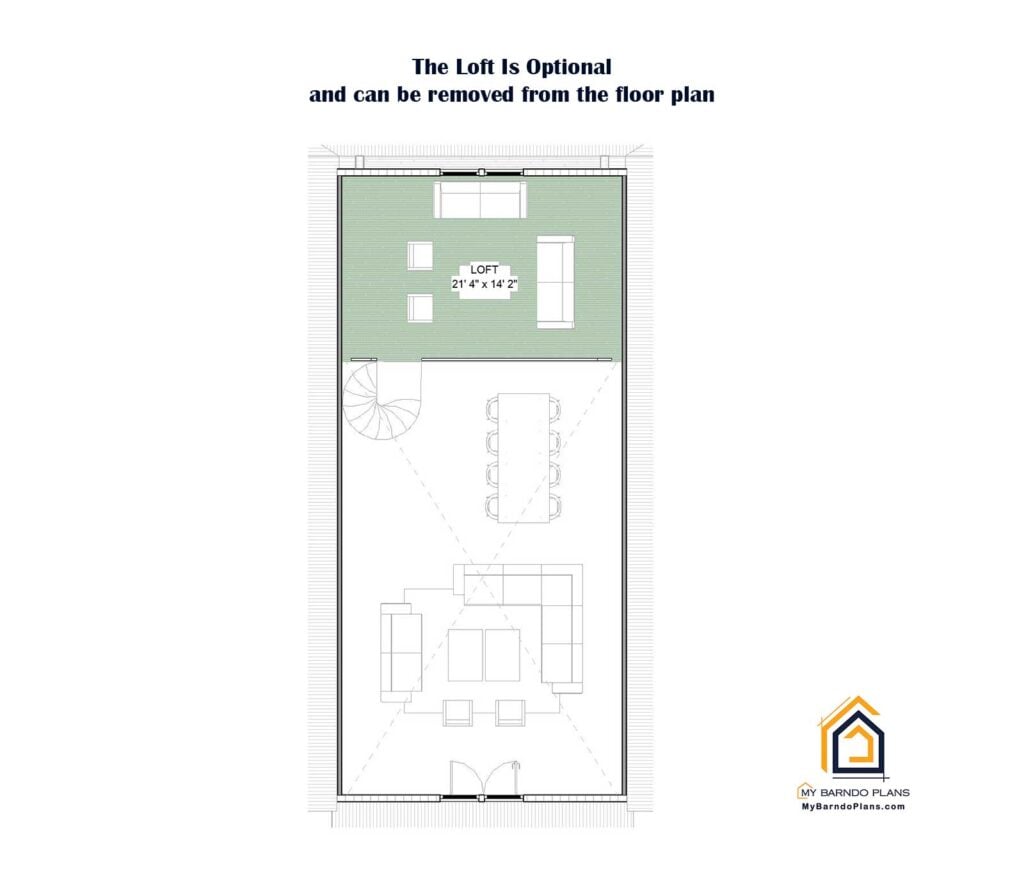

Loft Plan for The Lonesome Dove Barndominium

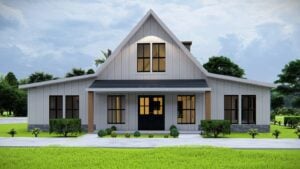

Dove barndominium is now available as a light weight steel home kit.

photo of inside of dove barndominium showing staircase to the loft.

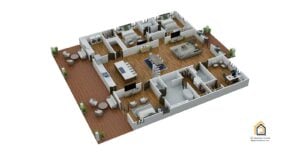

3D Rendering of Interior photos of the Dove Barndominium 3 bedroom 3 bath

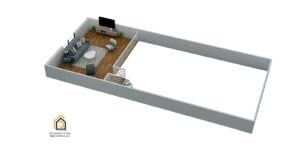

Loft area 3D layout of Dove Barndominium floor plan

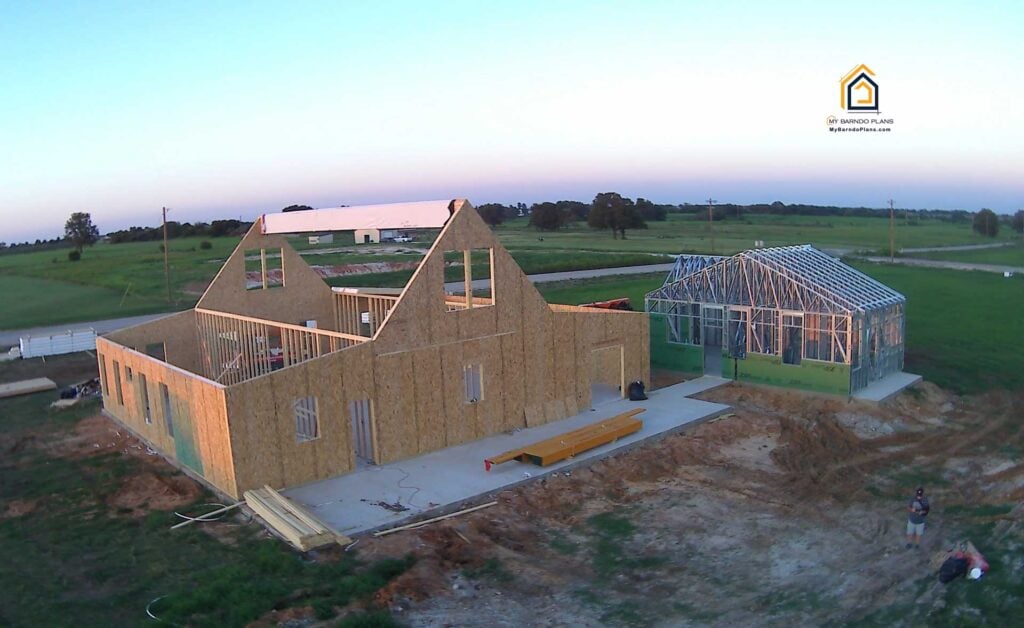

Dove Barndominium SIP Kit being erected in Texas

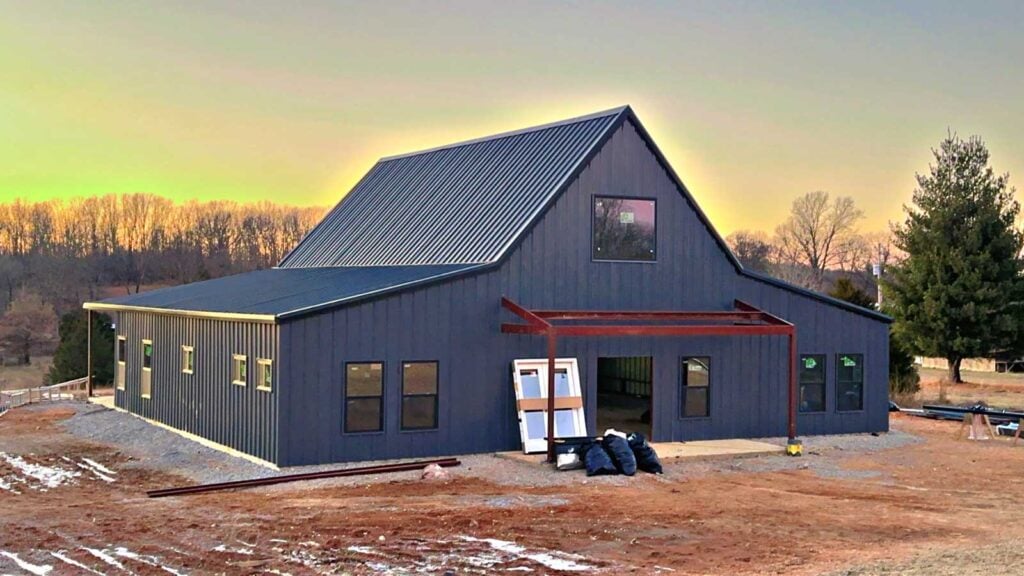

Photo of the Dove Barndominium Under Construction

photo of inside of dove barndominium looking at kitchen

photo of master bedroom of Dove barndominium

photo of master bathroom of Dove barndominium

photo of loft area in the Dove barndominium

photo of front room of Dove barndominium

14 images

Floor Plan Specifications

Sq Ft

2,702

Bedrooms

Bathrooms

Story

Width

56'

Depth

48'

This floor plan can be modified.

The Dove Barndominium

Choose your plan package below

Plan Package

Additional Options

Minor Modifications $150.00

Two hours of modifications can include things like moving rooms, moving doors, and moving the garage entry. After you place your order, we will call you to discuss details and give instructions for sending in writing. If we think your changes will give over the 2 hours, we will inform you during the call. Most modifications do not take more than two hours.

List of Materials $225.00

A complete list of materials you need to finish the project.

Flip the Plan (Mirror) $99.00

We flip the plan so that you can build it opposite of how it is laid out. We Reverse the entire plan including all text and dimensions so that they are reading correctly for your builder.

Plan Total $850 Single-build license

Secure checkout

PDF or 24×36 print

Build on your timeline

Not quite right? Architect modifications start at $150 — or ask us about a custom design.

Terms and Condtions Returns & Copyright Info

Need Help with Your Barndominium?

Speak with a build advisor — not a sales rep. Free, no obligation.

Get Personalized Help — Free, No Obligation

Red Iron Steel Kit

$64,400 Starting price

56x48 Steel Barndominium Kit 2,702 Sq Ft - The Dove

Learn More & Configure →

Cold Formed Steel Kit

$136,750 Starting price

2,704 sq ft 3 BR Barndominium Cold Formed Steel Kit - The Dove

Learn More & Configure →

SIPs

$176,022 Starting price

2,704 sq ft Barndominium Kit - Fully Insulated Home - The Dove

Learn More & Configure →

Floor Plan Details: The Dove Barndominium

Square footage

Living area 2,702 sq ft

Secondary living 325 sq ft

Covered porch 859 sq ft

Total covered 3,962 sq ft

Rooms

Bedrooms 3

Bathrooms 3

Story 1

Dimensions

Width 56'

Depth 48'

Ceiling height 26 ft

Roof peak height 27.5 ft

Garage & structure

Total doors 4

Total windows 22

Roof pitch (primary) 14/12

Roof pitch (secondary) 2/12

Included features

Office Yes

Pantry Yes

Laundry room Yes

Mudroom Yes

Loft Yes

Family room No

In-law suite No

2,702 Sq Ft, 3-BR, 3-BA Barndominium Plan with a Loft

The 3-br plan has been updated to include spiral stairs to the loft. The Dove Barndo is part of your Texas Collection.

Barndominium Home Plan includes:

Floor Plan designed by an architect
Roof Plan
Electrical Plan
Window and Door Schedule
Elevations
Renderings

Welcome to the Dove Barndominium. Designed for full-time living, this floor plan delivers a highly functional layout with generous, usable space.

Every square foot is intentional, maximizing livability while keeping build costs in check. Plumbing locations are carefully planned to reduce complexity, and the electrical layout is optimized for efficient, low-wattage lighting to help lower finish-out costs.

The Dove can be shipped as a complete home kit, and interior framing is available in light-gauge steel panels for faster, cleaner construction and a shorter build timeline.

The Barndo Plan features an Open-to-the-Ceiling living area for more light and a larger feel. This barndo plan has a loft over the kitchen that adds livable space with minimal cost. Visit our 3 BR Barndo Plan Collection page to see more options.

Barndominium Main Living Quarters

The Dove Barndominium has three spacious bedrooms and 3 luxurious bathrooms, The Dove provides room for everyone to have their private space with a great gathering area to come together and enjoy each others company.

Master Bedroom

The Dove Barndominium master suite is laid out to be functional and easily accessible and features a walk-in closet and full bath with a tub. The master suite has French Doors that leads to the back porch.

The Kitchen in Your Barndo

The Kitchen in The Dove Barndo connects seamlessly to the living room and adjacent dining area. The kitchen counter will have space for seating.

The Loft

The Dove features a 324 sq ft loft designed to add flexible living space without increasing the home’s footprint. Overlooking the main living area, the loft works well as a home office, game room, second living space, or additional guest area.

This space is ideal for separating activities, giving kids or guests their own zone, or creating a quiet place to work without sacrificing connection to the rest of the home. Whether you need a functional workspace or a bonus living space, the Dove’s loft adds real usability and long-term value to the floor plan.

The Dove Home Kits

The loft is the barndominium is not counted in the square footage, but it can be reached via a ladder in the kitchen. This is perfect space for a bunk room or a secret lair and hangout for the kids or grandkids.

Barndominium Kits for The Dove

We have three types of home kits for the Dove. Cold Formed Steel, SIP Panel, and Red Iron.

Dove Cold-Formed Steel Barndominium Home Kit

The kit includes everything to close the house off and interior framing. Once erected and this house will be ready for wires and plumbing. (Kit Erecting Not Included in price)

Cold-Formed Steel Barndominium Kit Includes:

Stamped engineered plans
Exterior walls
Interior wall framing
ZipSystems R3 Sheathing Board
Siding
Trusses
Roof
Windows
Exterior doors.

Dove SIP Wall Barndominium Kit

This is our most insulated home kit. The walls come standard with 6.5 inch wall (R23 Insulation), and the Roof is 8.25 Inches (R30). We can upgrade the R Factor as high as 51, based on local regulations and snow loads. Price reflects specs shown. Increasing thickness of roofs or walls will increase costs.

SIP Wall Barndominium Kit Includes:

Walls: 6-1/2″ Panels with R23 Insulation
Roof: 8-1/4″ Roof Panels with R30 Insulation.
Interior Framing: Wood Studs for Internal Walls
Siding: 26 Gauge Metal Siding. All siding options, including Hardie Board, are available in this kit.
Windows
Exterior Doors

Dove Red Iron Barndominium Kit

Structure
Purlin
Girts
26 gauge siding
26 gauge roofing
Trim & Clips

Ready to Build?

Get Your The Dove Barndominium Plans

Quick PDF delivery. Architect-sealed for permits. Modify to fit your lot, climate, or style — from $150.

Get This Plan — $850 Explore Building Kits

Starting at $850 • Single-build license • Quick download
