New Heritage Barndominium Floor Plan
This is a modified version of our Original Heritage floor plan. The plan has been mirrored, and the garage entrances have been moved to the side of the house. This barndo has 2br, 2ba and a home office or flex room.
The barndominium may be built anywhere in the USA; some small structural changes will be made for high snow areas. It is a little larger than the original.
This floor plan comes in three kit types. Remember the Red Iron kit only includes the structure and the shell. The SIP and Cold Formed Steel kits are far more complete. See details below.
This floor plan comes in three kit types. Remember the Red Iron kit only includes the structure and the shell. The SIP and Cold Formed Steel kits are far more complete. See details below.

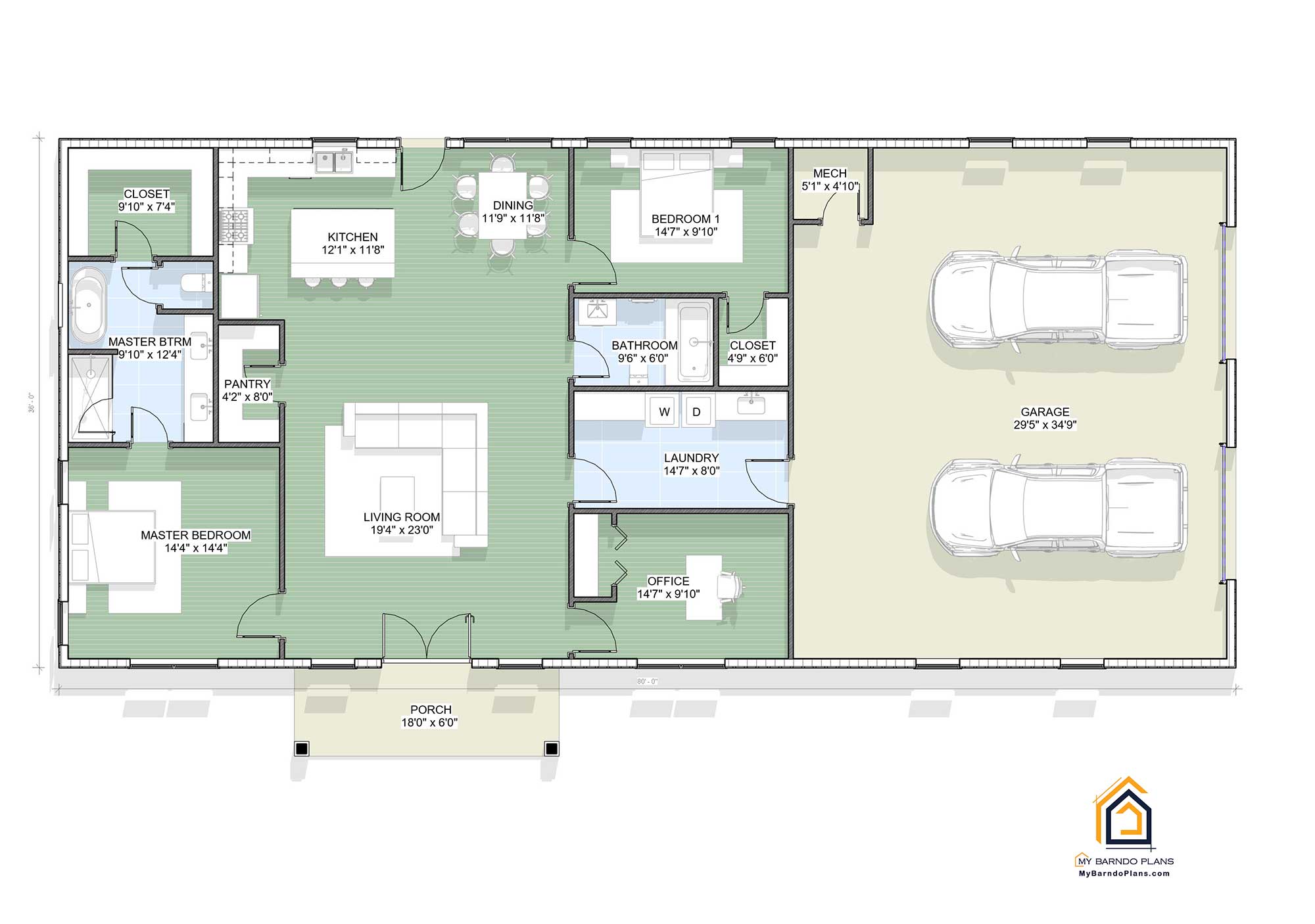

OVERVIEW OF 1,745 SF BARNDOMINIUM PLAN
2-BR, 2BA, and a HOME OFFICE with SIDE GARAGE ENTRY
Introducing The New Heritage Barndominium that effortlessly blends comfort, utility, and luxury into one open concept floor plan design. The plan was created for a client based on an existing plan. The changes were significant enough for us to create new product listing for this barndo floorplan.  With 2 spacious bedrooms and 2 full baths, it promises ample living room for everyone. The Flex room could be modified to have a closet to make this plan a 3bd home for resale sake.
Home Floor Plan includes:
- Floor Plan designed by an architect
- Roof Plan
- Electrical Plan
- Window and Door Schedule
- Elevations
- Renderings
The master suite is on the front of the house; we assume this plan will be built someplace quiet. The plan can be modified to move the master to the back of the home. The barndominium master bath features a roomy walk-in closet to fit your wardrobe and a large, luxurious master bathroom that ensures your private space is as comfortable as it is functional.
For those working from home or needing a quiet place to concentrate, the study/office provides an ideal setting. It’s designed for productivity and peace – an inspiring space to bring your best ideas to life or to enjoy your favorite books in solitude.
*Please note the width and depth include the garage, but it does not include the front porch. The covered front porch on this barndominium is is 10′-10″
Barndominium Living Area
Barndominium Floor Plan is designed to give you open living space with a beautiful and convenient floor plan.
The heart of The New Heritage Barndominium is its open floor plan, which flows seemsly from the front door to the kitchen and the back of the home. This design promotes easy living and makes entertaining your family simple and enjoyable. The kitchen was designed to be equipped with traditional fixtures and finishes with a large center island. It’s not just a kitchen; it’s a place for bonding, conversation, and making memories while you cook and eat.
Master Bedroom
The New Heritage Barndominium master suite is laid out to be an oasis of serenity, featuring a roomy walk-in closet with enough room for his and her wardrobes. The large luxurious master bathroom ensures your private space is as comfortable as it is functional.
The Kitchen
We planned for enough room to have a gathering kitchen that connects seamlessly to the living room and adjacent dining area. The kitchen counter will have space for seating
The Garage & Shop
This oversize two-car garage is entered from a side driveway. It was designed to be deep enough to park a large truck and has room for all your toys and direct access to the barndo through the utility room.
Barndominium Kit Prices
Kits Do Not include slab or septic.
The SIP Wall Kit $135,249 (our most complete kit)
- Structural Insulated Panels or SIP for the home structure
- The garage kit is a traditional stick build (included – not insulated.)
- SIP Garage upgrade available for 26k
- Closed Cell Foam Walls and Roof
- Windows
- Exterior Doors
- Internal Framing
- Moisture barrier
- Includes delivery to the Lower 48 States.
70% of the home is complete after erecting. (Kit does not include erecting)
Cold-Formed Steel Kit Pricing $96,125
- All Interior and Exterior Framing (panels built in Dallas and shipped.)
- Roof Trusses (Steel Roof trusses shipped ready to install)
- Strappings (if needed)
- ZipSystems Exterior Sheathing (R3, you can upgrade to R6)
- Roof decking
- Roof Underlayment
- 26 Gauge Metal Siding
- 26 Gauge Metal Roofing
- Exterior Doors
- Windows
Red Iron Steel Kit Pricing $45,888
The steel barndominium kit comes with all metal for the main steel structure, roof, siding, and roof material for porches.
- Engineered plans for the base metal structure are included
- Porches, rafters, and posts are normally made of wood, which is not included.
- All wall girts, roof girts, and cutouts will be done on sight by the welder.
- Weld-up kits will provide the CNC cut clips for metal structures.
- All clips will be welded on sight by the contractor.
- Paneling is included in the client’s choice of standard colors. Metal Gauge:
- 26 Gauge PBR Panel for Roof & Walls.
*Color options for walls, and trim.*Standard Galvalume roof.- Rake, Eave, Jamb, and corner trim all included in the package. - Peak boxes included
- Rake end caps included
- Colored Tek and Lap Tek screws are included for Panels.
- Butyl Tape and PBR closures are included.
- Doors and windows are not included.
- Approx. 4-6 weeks delivery time after finalized engineered plans have been received and signed
Wood posts and wood rafters are not included. Windows and doors are not included.
