Legacy Multigenerational Home Floor Plan

3,916 Sq Ft | 5 Bed | 4.5 Bath | 1 Story | 108' x 80'

featured image Legacy Barndominium Front View

The Legacy is a modern, single-story barndominium built for multi-generational living. With over 3,900 square feet of total space, it combines comfort, privacy, and flexibility—perfect for families who want to stay connected while maintaining independence.

The in-law suite features its own laundry and kitchen, providing total independence from the main house. Makes a great granny flat or rental.

The Legacy Barndominium Floor Plan $1,050.00

We can modify this floor plan to meet your family’s needs—modifications by the staff architect for $150.

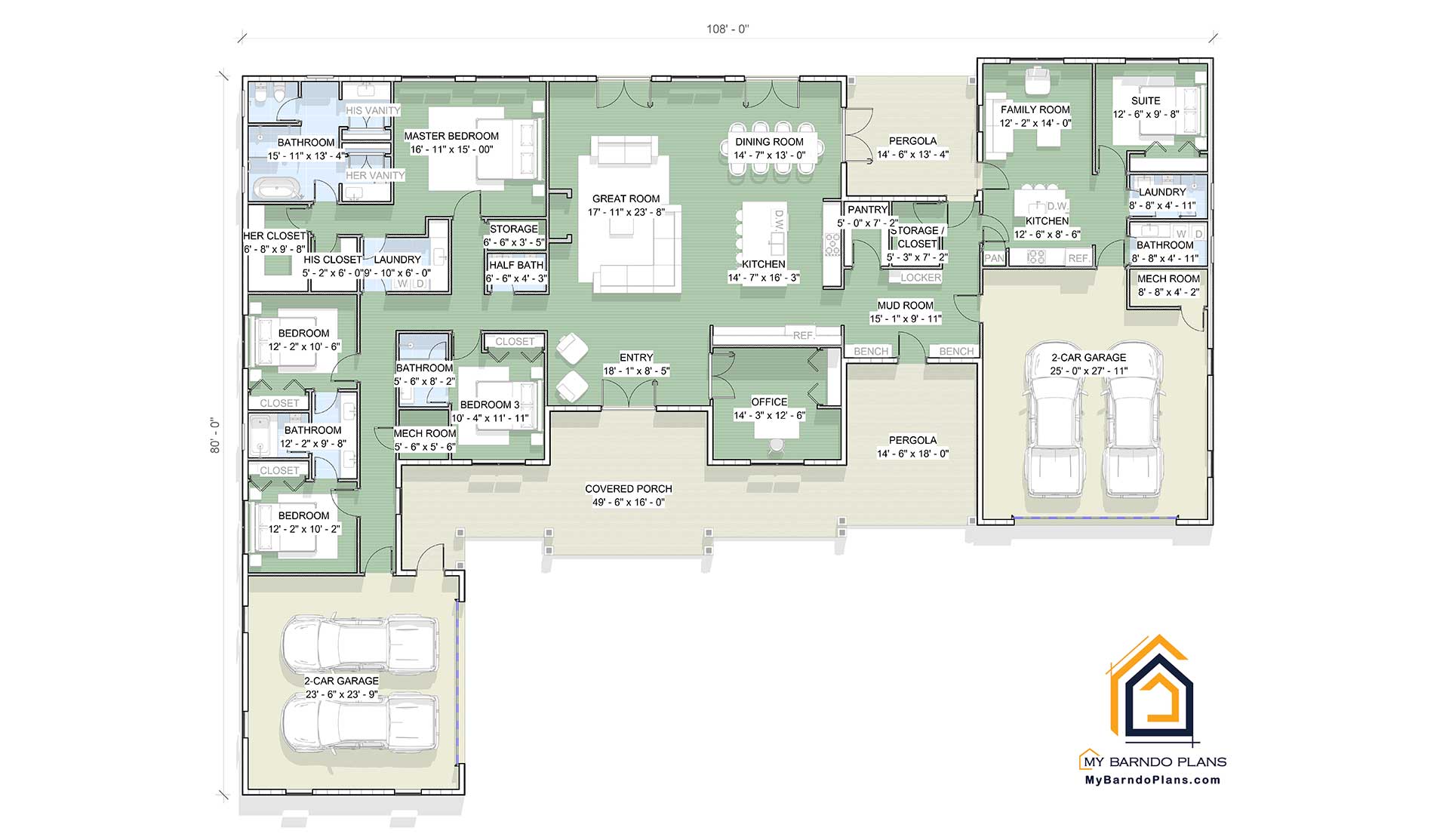

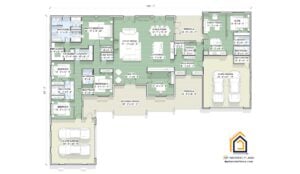

Legacy Barndominium floor plan layout showing the main 4-bedroom house and a 1-bedroom in-law suite with separate kitchen, garages, and covered porches.

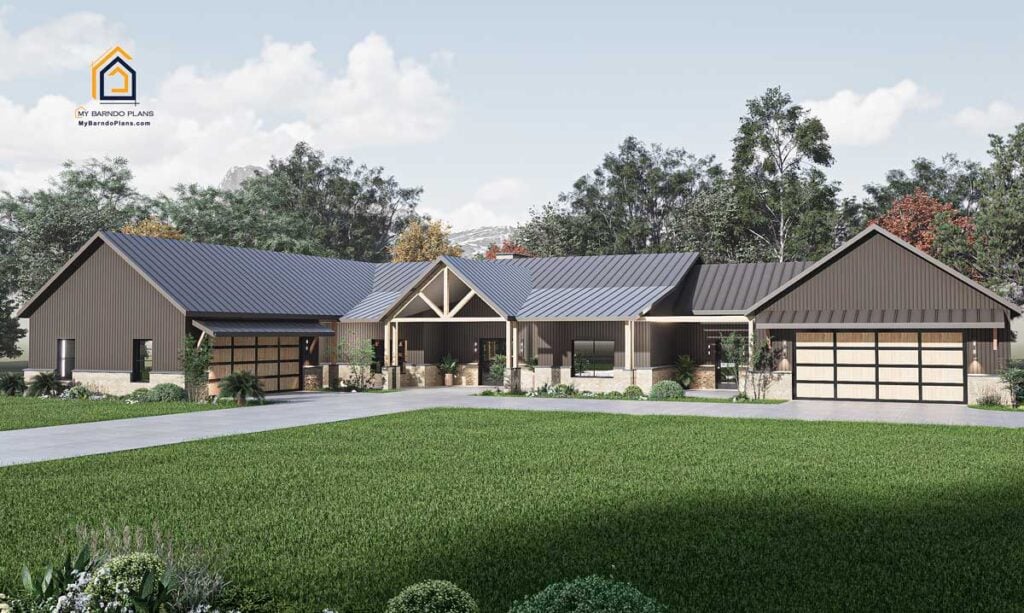

Front elevation of the Legacy Barndominium featuring dual 2-car garages, a large covered entry porch with timber accents, and expansive driveway

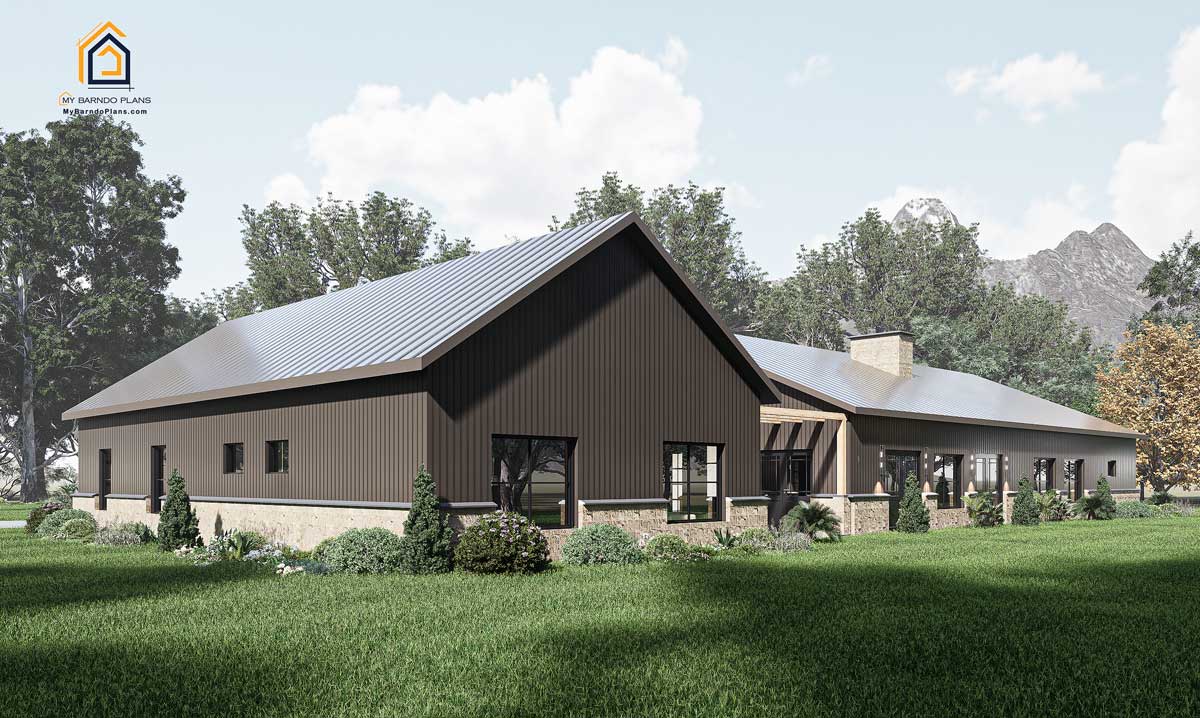

Back view of the Legacy Barndominium highlighting its long single-story layout, multiple windows, and stone wainscoting against a mountain backdrop.

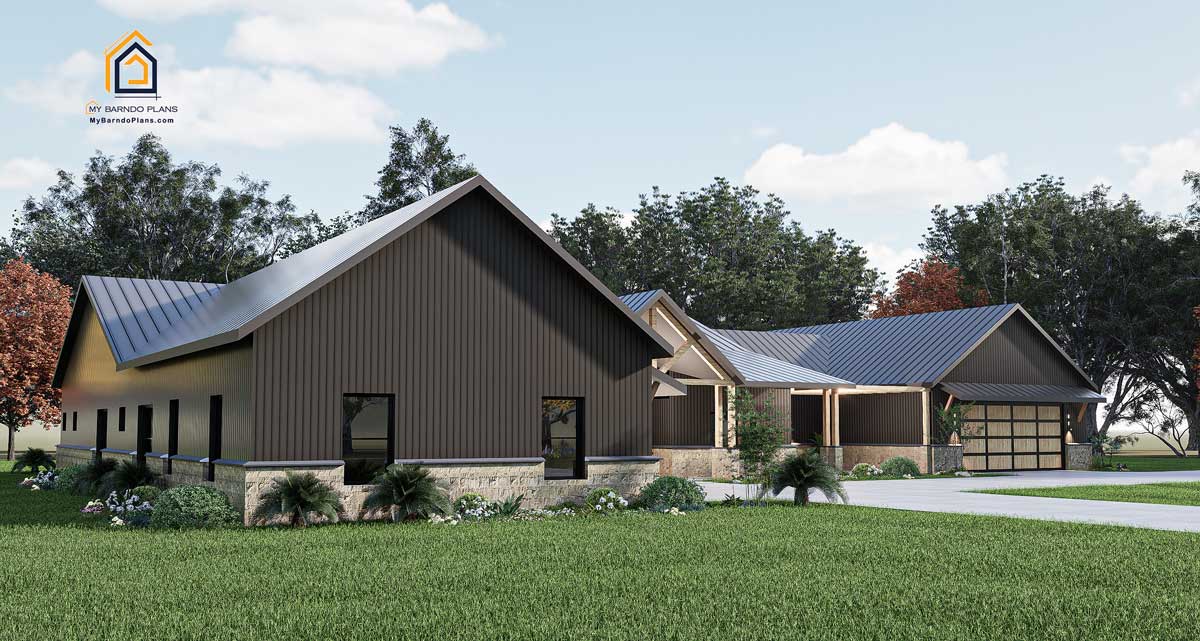

Angled side view of the Legacy Barndominium showing the garage side, detailed landscaping, and a partial view of the front entry area.

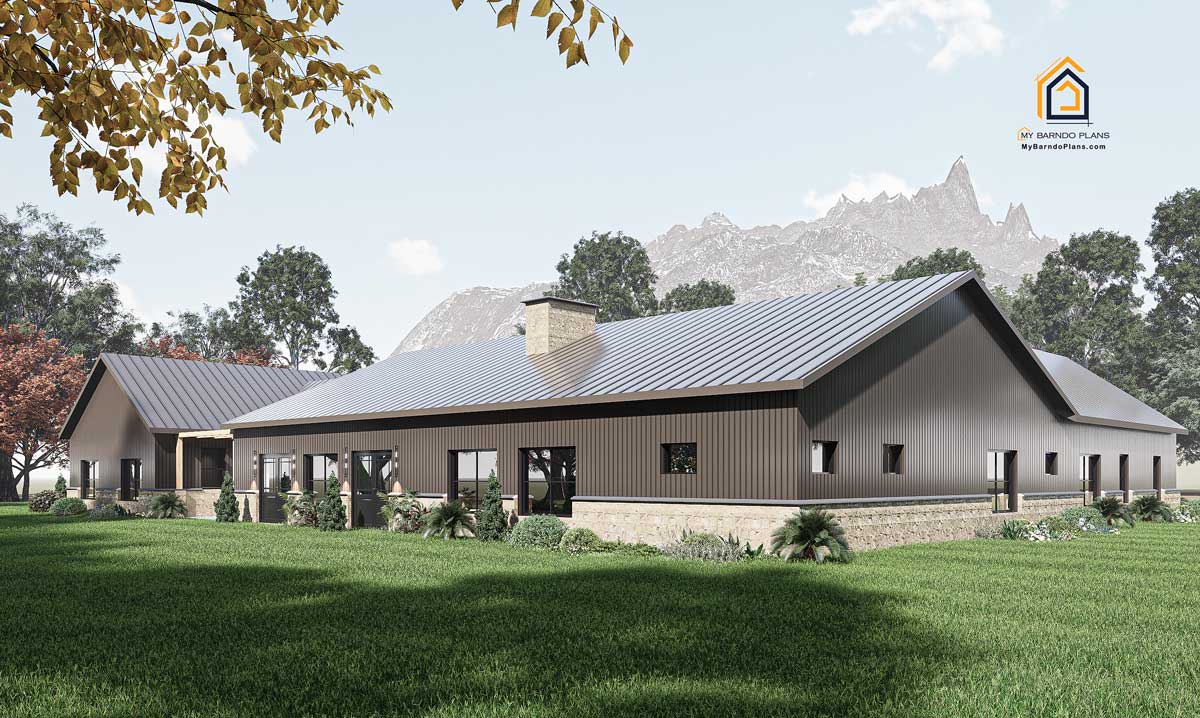

Exterior rendering of the Legacy Barndominium showing the left side with dark vertical metal siding, a pitched metal roof, and landscaped greenery in the foreground.

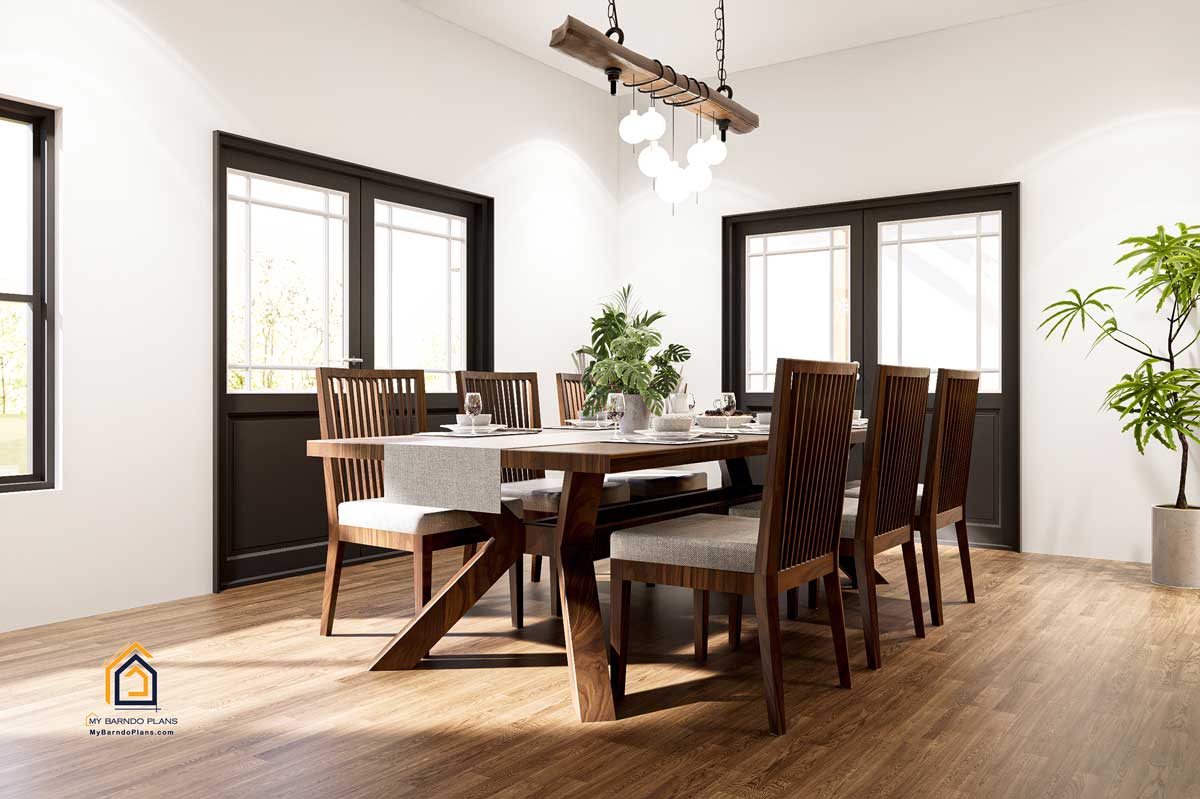

Bright dining area in the Legacy Barndominium with a solid wood table, matching chairs, and large windows that fill the room with natural light.

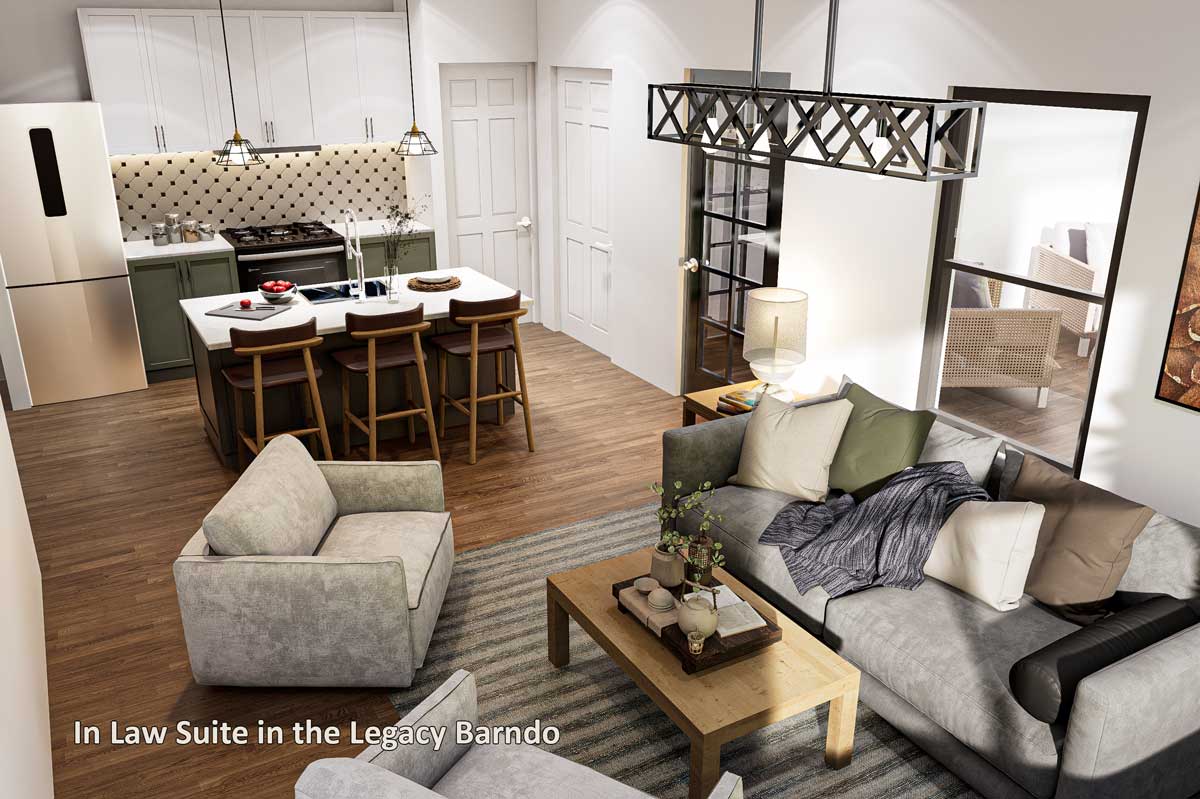

Modern kitchen and cozy living space in the in-law suite of the Legacy Barndominium, featuring a central island, pendant lighting, and open-concept layout.

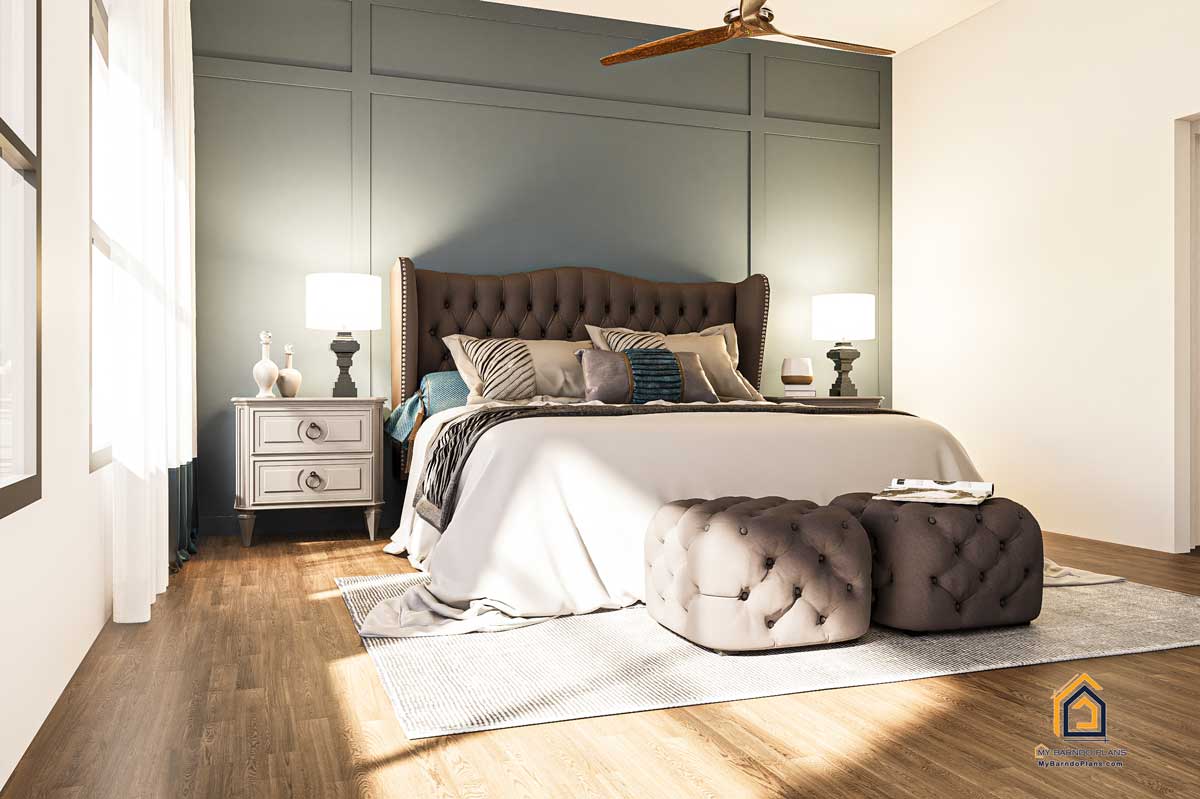

Elegant master bedroom in the Legacy Barndominium, showcasing a tufted headboard, matching ottomans, and accent wall with modern paneling.

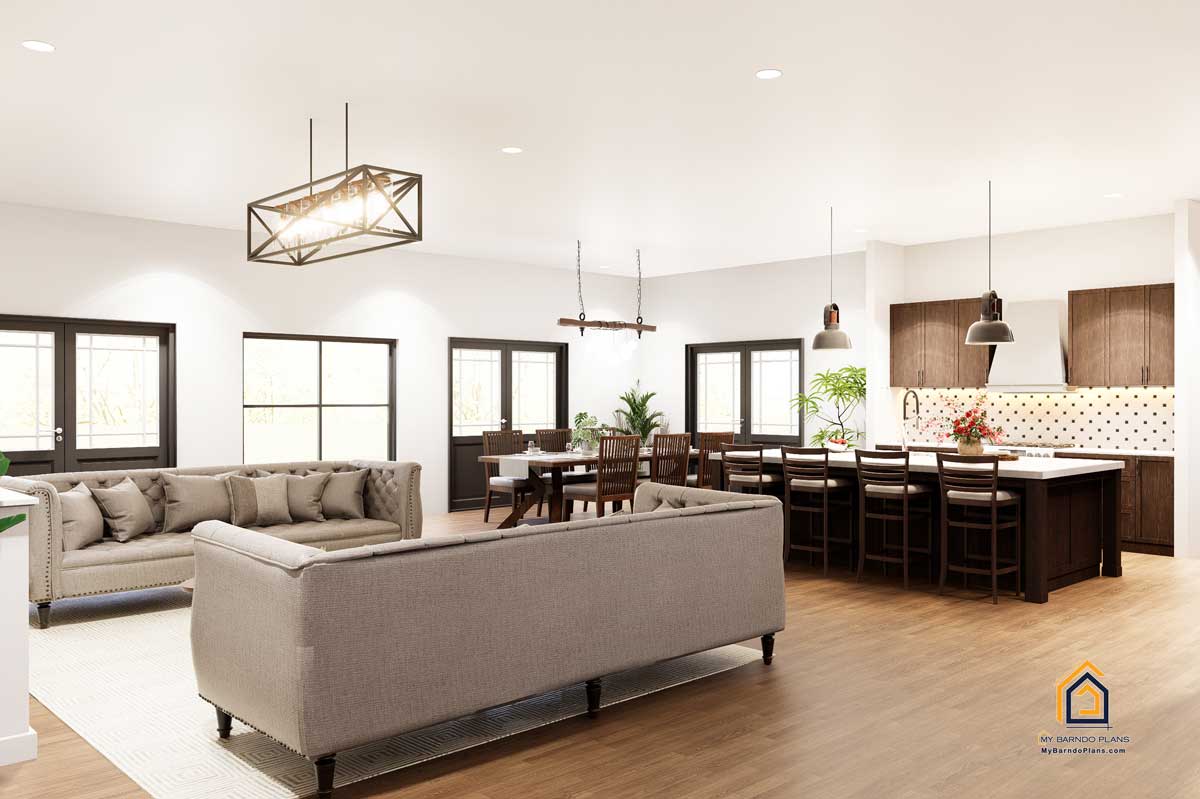

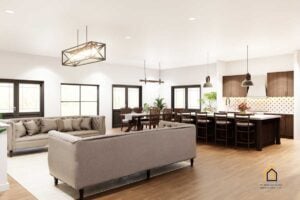

Expansive open-concept living area in the Legacy Barndominium, connecting the living room, dining space, and kitchen with seamless flow and high-end finishe

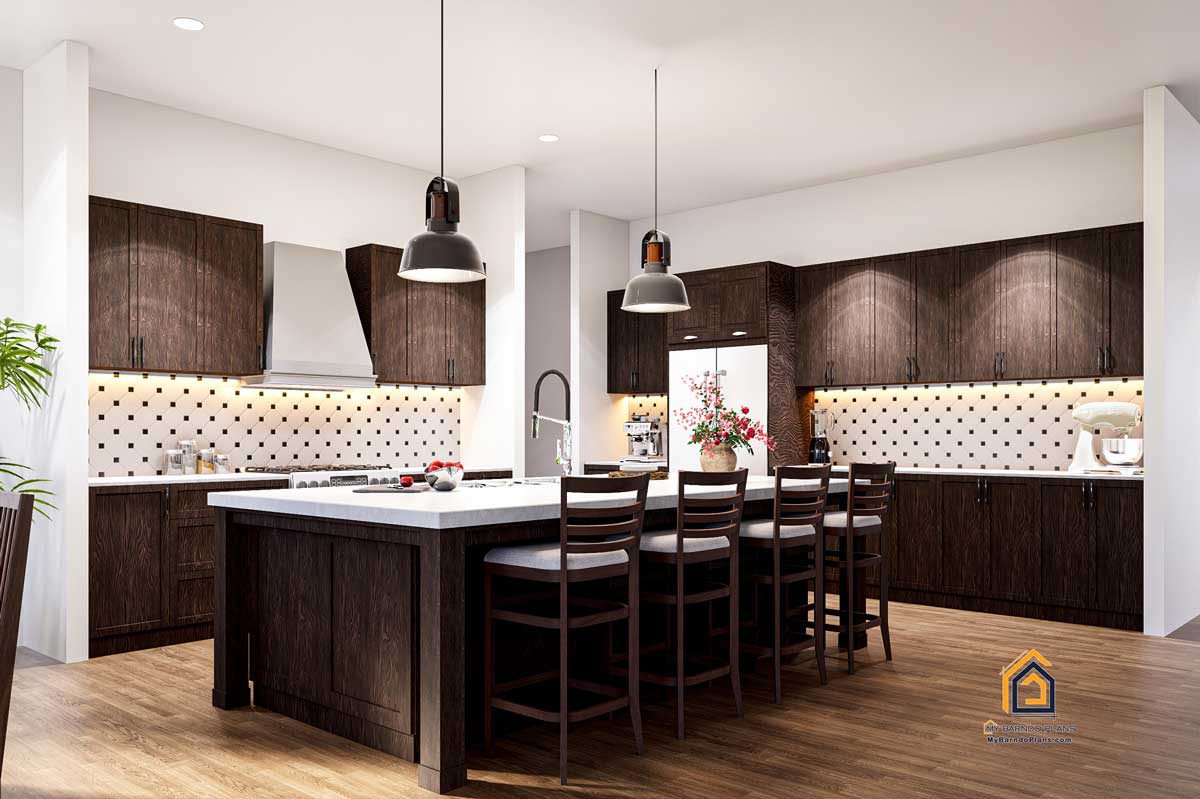

Spacious kitchen in the Legacy Barndominium featuring dark wood cabinetry, a large island with bar seating, and modern tile backsplash

Configure This Kit To Estimate Your Budget

The home kit is available for SIP Wall and Red Iron. The floor plan can be modified for any building type.
Configure This Kit To Estimate Your Budget

Sq Ft 3916

Story 1

Bed 5+

Bath 4

½ Bath 1

Cars 4

Width 108

Depth 80

Own This Plan $1,050.00

Select an option

Additional Options

Additonal Options

Minor Modifications $150.00

Two hours of modifications can include things like moving rooms, moving doors, and moving the garage entry. After you place your order, we will call you to discuss details and give instructions for sending in writing. If we think your changes will go over the 2 hours, we will inform you during the call. Most modifications do not take more than two hours.

List of Materials $350.00

A complete list of materials you need to finish the inside of the project. – This does not contain structural elements.

Flip the Plan (Mirror) $99.00

We flip the plan so that you can build it opposite of how it is laid out. We Reverse the entire plan including all text and dimensions so that they are reading correctly for your builder.

Pricing: Stock PDF Plan $1,050.00
Modify this plan for $150 more
Or get a custom design based on this plan

Terms and Condtions Returns & Copyright Info

Ask a Question

Sq Ft 3916

Stories 1

Bed 5+

Bath 4

½ Bath 1

Cars 4

Width 108

Depth 80

We can modify this floor plan to meet your family’s needs—modifications by the staff architect for $150.

The Legacy Barndominium Floor Plan $1,050.00

See Home Kit Prices for the The Legacy Barndominium

SIPs $349,000 Red Iron Steel Kit $124,650

SIPs $349,000

Red Iron Steel Kit $124,650

Configure This Kit To Estimate Your Budget

The home kit is available for SIP Wall and Red Iron. The floor plan can be modified for any building type.
Configure This Kit To Estimate Your Budget

The Legacy Barndominium

This spacious multi-generational barndominium is thoughtfully designed to bring families together—while still giving everyone their own space. The main home offers 3,302 square feet of single-story living with four bedrooms, a dedicated office, and expansive open-concept spaces for gathering. The attached 614 sq ft in-law suite includes its own bedroom, full kitchen, family room, and laundry—perfect for an aging parent or adult child who needs independence without being far from home.

Highlights Include:

5 total bedrooms and 4.5 bathrooms
Two 2-car garages
Multiple covered outdoor areas with pergolas
Private entrances for both wings of the home
Energy-efficient, modern barndo design

Whether you’re planning for aging-in-place or just want more room to grow, the Legacy gives your family the space to thrive—together.
