The Apex 5 Bedroom Barndominium with Large Shop
Apex barndominium floor plan design with 5 Bedrooms, 4.5 Baths, an open-concept living area. and a large shop.
Park your RV and toys in this HUGE garage barndo shop area. The Apex is the height of a great barndominium floor plan design with 5 Bedrooms, 4.5 Baths, and an open-concept living area. The GIANT SHOP area can be reduced to save money if you don’t need the space.
The barndominium can be built anywhere in the USA; some minor structural changes will be made for high snow areas.
The Apex 5 Bedroom Barndominium Floor Plans & Pricing
Floor Plan Specifications
Plans can be modified to meet your needs, but you may incur additional engineering fees to produce the kit.
The Apex 5 Bedroom Barndominium
Choose your plan package below
Need Help with Your Barndominium?
Speak with a build advisor — not a sales rep. Free, no obligation.
Get Personalized Help — Free, No ObligationApex Home Kit Prices
Love this plan? A kit ships you the entire building system — materials, engineering & more.
Floor Plan Details: The Apex 5 Bedroom Barndominium

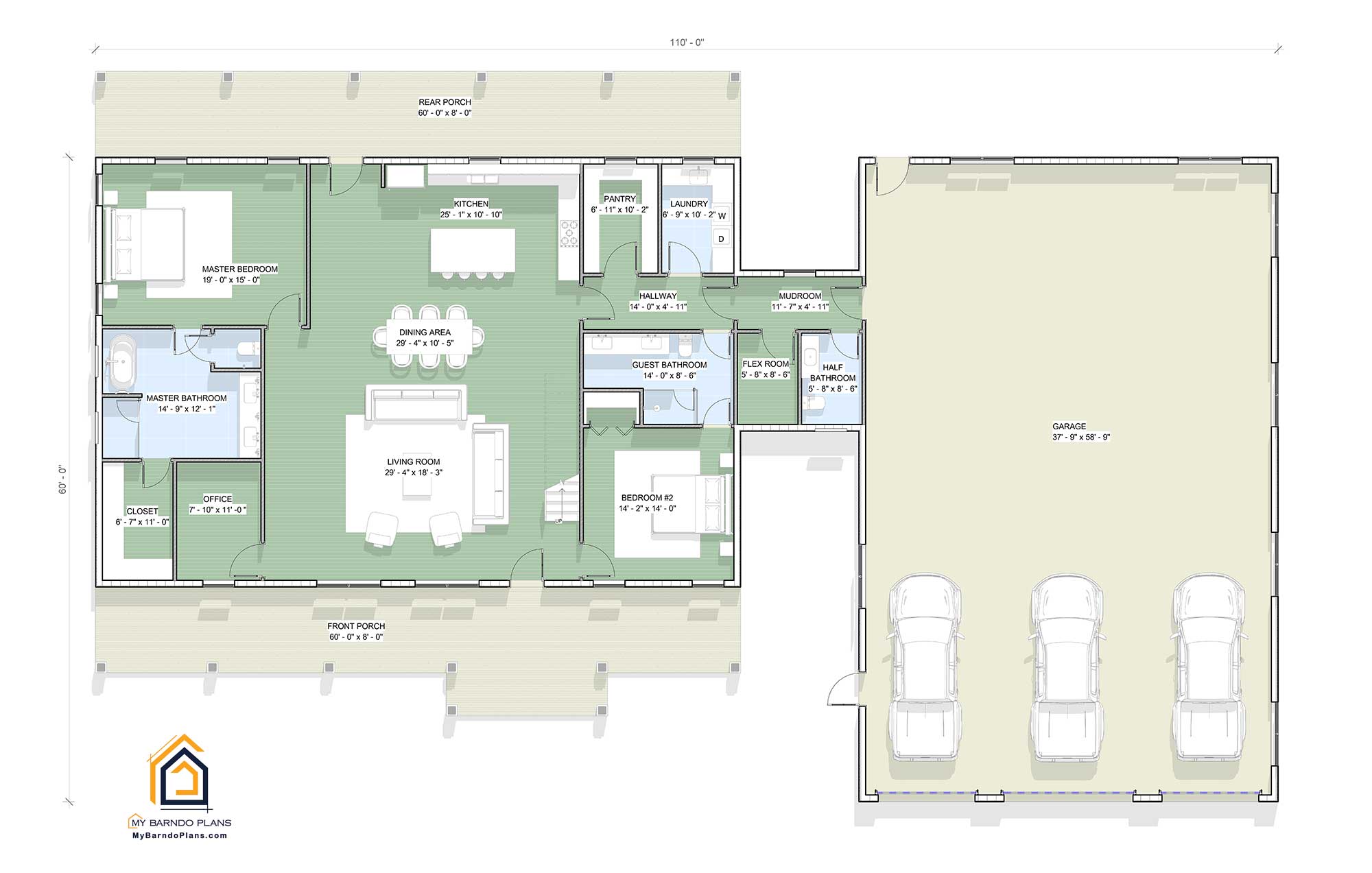

4,467 SF BARNDOMINIUM FLOOR PLAN “The Apex”
5 Bedroom, 4 Full Bath, 1/2 Bath, Home Office & Loft

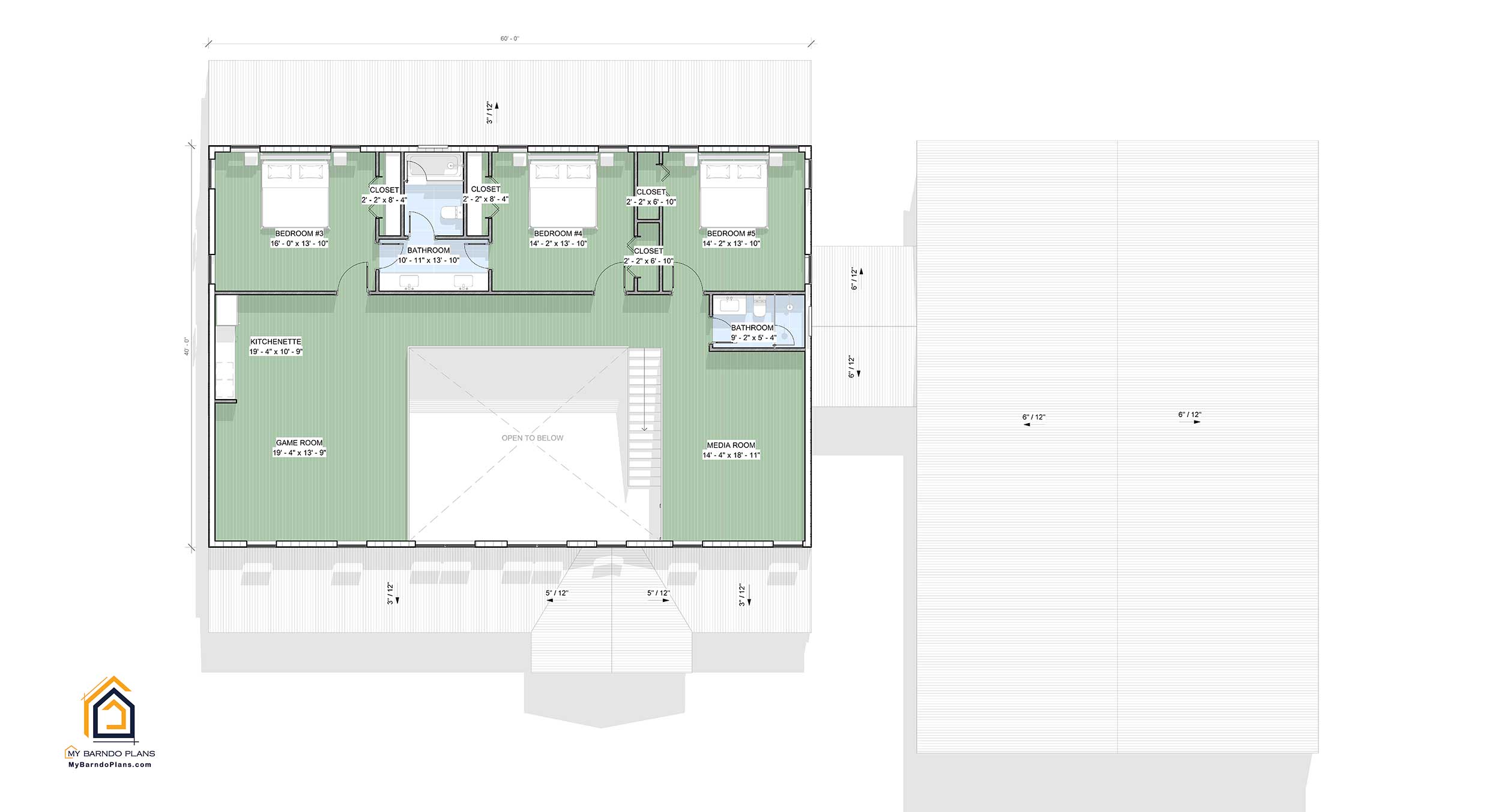

This floor plan was updated in March 2025. It now has more living space in the same footprint. The plan now has a game room and a media room upstairs.
- living area can be vaulted, or a cathedral ceiling
- downstairs has 10-foot ceilings
- upstairs has 9-foot ceilings
Welcome to the incredible and large Barndominium with 5 bedrooms. We marry a large functional floor plan with style to create a living space that is uniquely yours. Let us introduce you to “The Apex,” our barndominium masterpiece designed for large gatherings or a great Air BnB. Great Open floor plan for a Barndo.
>>>Looking for single story five bedroom barndo? See the Liberty.
Barndominium Home Plan includes:
- Floor Plan designed by an architect
- Roof Plan
- Electrical Plan
- Window and Door Schedule
- Elevations
- Renderings
The Barndo Plan has an Open to the Ceiling space in the living area for more light and a larger feel. This plan has a SIP Kit and steel barndominium kit available that we can erect for you anywhere in the lower 48,
Step onto The Apex’s defining feature: A Super Barn-Shop-Garage. If you have tractors, an RV or outdoor toys, you will have no trouble storing them in this super-sized garage area.
The Apex Barndominium Floor Plan is designed to give you enough space to live, entertain and work. The ultimate Live, Work & Plan Barndo Experience.
The Apex Barndo features five spacious bedrooms and 4 full bathrooms, 1/2 bath and a home office. The Apex Barndominium provides ample room for everyone in the family to have their private haven. The bathrooms, fitted with modern amenities and tasteful finishings, are designed to offer a relaxing experience after a long day.
The Apex Barndominium master suite is designed to be luxurious, featuring a large master bathroom, a walk-in closet, and windows for natural light. Just one of the five amazing bedrooms.
We planned for enough room in The Apex Barndo to have a large gathering kitchen that connects seamlessly to the living room and adjacent dining area. Like most of our Barndo Plans, the kitchen counter will have space for seating.
This oversized SUPER garage, shop, and barn has room for your RV and fleet of vehicles, and a small army. If you have a lot of things to store or want a large workshop, this is the floor plan for you.
2.5 times STRONGER than a stick-framed home.
Structurally Insulated Panels (SIP) kits are made with closed-cell spray foam sandwiched between two zinc-treated boards. The home can have an R Factor as high as R-51. The components of the SIP Walls are low or no VOC (Off-Gasing). SIP homes are strong and have withstood natural disasters like hurricanes, earthquakes and tornadoes. We will engineer to your zip code as required.
Our panels incorporate SIP Shield+ and are treated to safeguard against decay and wood-boring insects.
The Apex SIP Kit uses SIP for the living area of the home; the Garage is priced as red iron. We can price the garage in SIP if you want an insulated shop area.
The SIP Kit is our most complete kit. The home kit includes:
- Structurally Insulated Wall Panels (R-Value 26 upgradeable to R42)
- Structurally Insulated Roof Panels (R-Value 42 upgradeable to R51)
- Windows
- Exterior Doors
- Interior Framing
- Siding
- Roofing
- Trim
*Kit does not include any wood trim, post, fireplace, or accessories pictured in the rendering. Kit does not include erecting.
Expect 90k-105k to erect home and garage – install siding and roofing, windows, necessary framing and exterior man doors.
Apex Home in Red Iron
The Red Iron kit only includes the shell, consisting of:
- Red Iron Structure
- Purlin
- Girts
- R-Panel Siding
- R-Panel Roofing
- Trim, such as j-channel and other necessary pieces to close off. (Note: Rendering is the artist’s rendition and does not necessarily reflect the kit 100%)
The kit does not include any wood posts, wood trim or fireplace. Kit does not include erecting.
Expect 90k-105k for erecting building and installing siding, roofing, and windows
Get Your The Apex 5 Bedroom Barndominium with Large Shop Plans
Quick PDF delivery. Architect-sealed for permits. Modify to fit your lot, climate, or style — from $150.
Starting at $1,050 • Single-build license • Quick download
